PRODUCT NAME: Black Silicon Carbide
TYPE: SiC
TIME：2017-11-22
VIEWS：944
PRODUCT DESCRIPTION：YONAI Produce Competitive Black Silicon Carbide

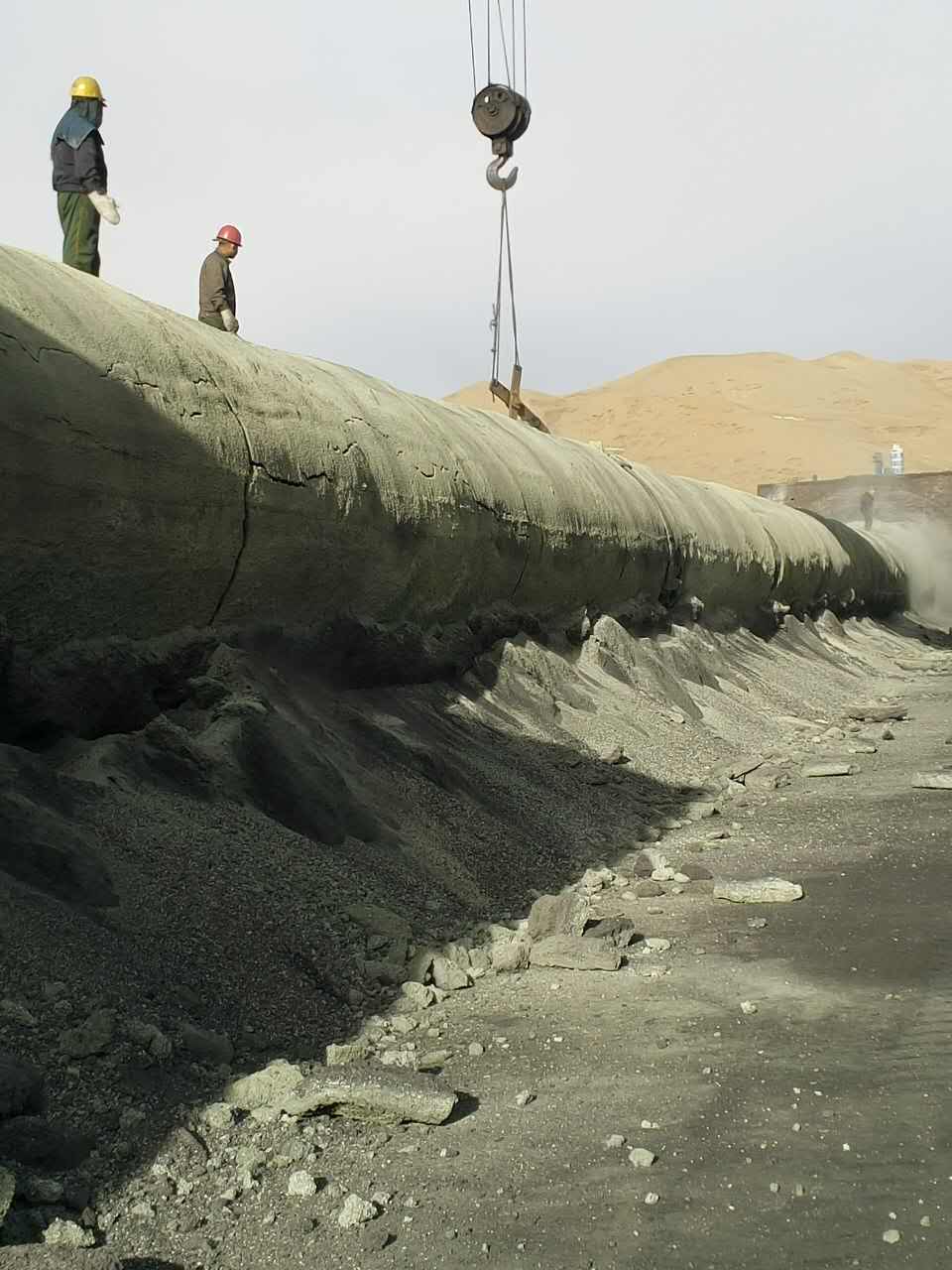

Silicon Carbide is produced by melting silica sand and a carbon source, typically petroleum coke, to high temperatures in a large, open “Acheson” furnace. The result of this high temperature process is the crystalline formation of Silicon Carbide grains, of both Green and Black coloring. The color difference is due to the purity of the silicon carbide. Green SiC is of higher purity.
YONAI offers both Macro and Micro grit sizing. Our Silicon Carbide is offered in standard sizes, custom particle sizes, custom densities, and custom chemistries.
TYPICAL PROPERTIES
|
High Hardness |
Chemical Inertness |
High Thermal Conductivity |
Abrasion Resistance |
|
Abrasive |
Low Coefficient Of Thermal Expansion |
Thermal Shock Resistance |
Strength At High Temperature Ranges |
TYPICAL APPLICATIONS
|
Abrasives |
Sintered Parts |
Reaction Bonded Parts |
|
Metal Matrix Composites |
Wire-Saw |
Body Armor |
|
Vehicle Armor |
Heat Transfer |
High Temp Sensors |
|
Ceramic Wear Parts |
Refractory ,Grinding |
Milling |
|
Lapping |
Hot Pressed Parts |
|
|
YONAI Black Silicon Carbide |
||||||
|
Application |
Specification |
Chemical Composition (%) |
||||
|
Refractory |
Coarse |
|
SiC |
F.C |
Fe2O3 |
Magnetic |
|
0-1-3 mm |
≥ 98 |
≤0.35 |
≤ 1.0 |
≤0.003 |
||
|
3-5 mm |
||||||
|
5-8 mm |
||||||
|
Microns |
180 mesh |
|||||
|
200 mesh |
||||||
|
240 mesh |
||||||
|
320 mesh |
||||||
|
Abrasive |
Grain |
12-80 # |
≥ 98 |
≤0.20 |
≤0.6 |
≤0.003 |
|
90-150 # |
≥ 97 |
≤0.30 |
≤0.8 |
|||
|
180-220 # |
≥ 97 |
≤0.30 |
≤1.2 |
|||
|
Microns |
240-4000# |
≥ 96 |
≤0.35 |
≤1.35 |
||
|
Color |
Black |
|||||
|
Hardness |
9.2 Mohs / 2550 Knoop |
|||||
|
Melting Point |
Sublimes at 4712 ℉ 2600 ℃ |
|||||
|
Refractoriness |
1900 ℃ |
|||||
|
True Density |
3.9 g/cm3 |
|||||
|
Particle Shape |
Blocky |
|||||
|
Remarks |
85Sic, 90Sic are available Customized Size is available |
|||||
